Creating ISPF Edit Macros

Date: May 21, 2025 Read Time: 8 minutes Topic: <ispf>

Introduction

I first learned about ISPF Edit Macros while taking a Coursera course on IBM z/OS Rexx Programming. The course highlighted two macros that I found particularly useful: RXGET and JC. RXGET retrieves the initial source code from a dataset and loads it into your current edit session. The JC macro allows you to add a job card to the top of your JCL. If I had been thinking, I would have copied them to study later, but I didn’t. Being me, I couldn’t get them out of my mind, so I decided to teach myself how to create my own edit macros.

I’m currently going through the second part of my pre-apprenticeship training from EMMA, and in this portion there is an emphasis on documentation. As a documentation enthusiast, I thought this would be a great opportunity to create a macro that would help me add comments to my code. For my first macro, I decided to recreate the JC macro, but I wanted to make it more flexible. My idea was to create a utility that would allow me to quickly add not only a job card but also various comment boxes based on the language I was using at the time. To start though, I focused on just the job card.

What we’ll be creating

In this article, I will walk you through the process of creating a simple edit macro that adds a job card to the top of your JCL. This macro will be written in REXX and stored in a dataset called REXX.EXEC. The macro will be called DOCBOX and, for now, will only accept a single parameter: JC. Here is what this macro will look like when it’s finished:

//TRAIN96A JOB ,'your last name',MSGCLASS=H
//*
//*****************************************************************
//*                                                               *
//*  MAINFRAME              ASSIGNMENT n                          *
//*                                                               *
//*  DEVELOPER NAME: your full name                               *
//*  DATE DUE: assignment due date                                *
//*                                                               *
//*  PURPOSE: The purpose of this job.                            *
//*                                                               *
//*****************************************************************

What Are Edit Macros?

An edit macro allows you to add custom functionality to enhance the ISPF editor. It is most often used to automate repetitive tasks and can be written in either REXX or CLIST. The macro is stored in a dataset and can be executed by typing the name of the macro in the command line. Common uses cases for edit macros include: repetitive tasks, custom commands, and data manipulation.

Creating an Edit Macro

As this is my first macro, I’m sure there are some ways that I could have improved it, and with time, I will. But, considering I didn’t know REXX existed until (April 2025), about a month ago, I’m not going to worry about that.

/* REXX */
ADDRESS ISREDIT
"MACRO (PARM)"

/**********************************************************************/
/* VARIABLES                                                          */
/*   JCL_CMT - A SIMPLE JCL COMMENT LINE                              */
/*   SCR_WDTH - THE SCREEN WIDTH (TODO: DYNAMIC, INSTEAD OF STATIC?)  */
/**********************************************************************/
JCL_CMT = "//*"
SCR_WDTH = 72
PARM = TRANSLATE(PARM) /* CONVERT TO UPPERCASE */

SELECT
  WHEN PARM = 'JC' THEN DO
    CALL GENERATE_JOBCARD
  END
  OTHERWISE DO
     MSG = 'INVALID PARAMETER. USE: JC'
     ADDRESS ISPEXEC "VPUT (MSG) SHARED"
     ADDRESS ISPEXEC "SETMSG MSG(ISPZ000)"
   END
END
EXIT 0

/**********************************************************************/
/* FUNCTION: GENERATE_JOBCARD                                         */
/* PURPOSE : GENERATES A JCL JOB CARD HEADER WITH STUBBED COMMENTS    */
/* RETURN  : NONE. WRITES TO THE TOP OF THE EDIT SESSION.             */
/**********************************************************************/

GENERATE_JOBCARD: PROCEDURE EXPOSE JCL_CMT SCR_WDTH
  /* THE REMAINING COLUMNS MINUS THE START OF THE COMMENT */
  SCRN_LEFT = (SCR_WDTH - LENGTH(STRIP(JCL_CMT, 'T')))

  /* AN EMPTY COMMENT LINE THE WIDTH OF THE SCREEN */
  CMT_LNE = JCL_CMT || COPIES(" ", SCRN_LEFT - 1) || "*"
  FULL_CMT_LNE = JCL_CMT || COPIES("*", SCRN_LEFT -1) || "*"

  /* STRINGS */
  PGM_NAME_LNE = "MAINFRAME" || COPIES(" ", 13) || "ASSIGNMENT N"
  DEV_NAME_LNE = "PROGRAMMER NAME: A. PROGRAMMER"
  DUE_DATE_LNE = "DUE DATE: MM/DD/YYYY"
  PURPOSE_LNE = "PURPOSE: THE PURPOSE OF THIS JOB"


  JC1 = "//"USERID()"A JOB ,'YOUR LAST NAME',MSGCLASS=H"
  JC2 = JCL_CMT
  JC3 = FULL_CMT_LNE
  JC4 = OVERLAY(PGM_NAME_LNE, CMT_LNE, LENGTH(JCL_CMT) + 2)
  JC5 = CMT_LNE
  JC6 = OVERLAY(DEV_NAME_LNE, CMT_LNE, LENGTH(JCL_CMT) + 2)
  JC7 = OVERLAY(DUE_DATE_LNE, CMT_LNE, LENGTH(JCL_CMT) + 2)
  JC8 = CMT_LNE
  JC9 = OVERLAY(PURPOSE_LNE, CMT_LNE, LENGTH(JCL_CMT) + 2)
  JC10 = FULL_CMT_LNE

  /* WRITE THE JOB CARD AT THE TOP OF THE JCL */
  'LINE_AFTER 0 = (JC1)'
  'LINE_AFTER 1 = (JC2)'
  'LINE_AFTER 2 = (JC3)'
  'LINE_AFTER 3 = (JC4)'
  'LINE_AFTER 4 = (JC5)'
  'LINE_AFTER 5 = (JC6)'
  'LINE_AFTER 6 = (JC7)'
  'LINE_AFTER 7 = (JC8)'
  'LINE_AFTER 8 = (JC9)'
  'LINE_AFTER 9 = (JC10)'

RETURN

What’s Happening Here?

/* REXX */ - On the mainframe a REXX program must start with this to be recognized as a REXX script.
ADDRESS ISREDIT - ‘Tells the script to use the ISPF editor commands.
MACRO (PARM) - ‘Defines the macro and accepts a single parameter, which is passed to the script as PARM.
JCL_CMT = "//*" - I’m declaring a variable that I’m using to identify a standard JCL comment line.
SCR_WDTH = 72 - Sets the screen width to 72 characters. I hardcoded this for now, but I plan to make it dynamic in the future, extracting the values from BOUNDS.
PARM = TRANSLATE(PARM) - Converts the parameter to uppercase. It’s just an easy to way to ensure the user doesn’t have to worry about case sensitivity.
SELECT - Starts a conditional statement. It checks the value of PARM using WHEN and like other switch statements, it has a ‘default’ case, which is OTHERWISE. Of note, and this is thing I need to learn about, the OTHERWISE statement never seems to display an error message. I need to look into this further.
WHEN PARM = 'JC' THEN DO - Checks if the parameter is JC. If it is, it calls the GENERATE_JOBCARD function.
GENERATE_JOBCARD: PROCEDURE EXPOSE JCL_CMT SCR_WDTH - Defines the GENERATE_JOBCARD function and exposes the variables JCL_CMT and SCR_WDTH. Without expose, the function would not be able to access the variables.
SCRN_LEFT = (SCR_WDTH - LENGTH(STRIP(JCL_CMT, 'T'))) - Calculates the remaining columns on the screen after the start of the comment. I use the STRIP function to remove any trailing spaces from JCL_CMT.
CMT_LNE = JCL_CMT || COPIES(" ", SCRN_LEFT - 1) || "*" - Creates an empty comment line the width of the screen. It uses the COPIES function to create a string of spaces.
FULL_CMT_LNE = JCL_CMT || COPIES("*", SCRN_LEFT -1) || "*" - Creates a full comment line the width of the screen.
PGM_NAME_LNE = "MAINFRAME" || COPIES(" ", 13) || "ASSIGNMENT N" - A string for the program name.
DEV_NAME_LNE = "PROGRAMMER NAME: A. PROGRAMMER" - A string for the developer name.
DUE_DATE_LNE = "DUE DATE: MM/DD/YYYY" - A string for the due date.
PURPOSE_LNE = "PURPOSE: THE PURPOSE OF THIS JOB" - A string for the purpose of the job.
JC1 through JC10 - These lines define the job card and comment lines. Of note are:
- USERID() - The USERID() function to get the current user ID
- OVERLAY - The OVERLAY function take three parameters: the string to overlay, the string to overlay on, and the length of the string to overlay. This is a bit like using whiteout to make a correction on a piece of paper. It allows you to change the text in a specific location without affecting the rest of the line. I chose this method because I felt like using OVERLAY would be easier than trying to calculate the position of the string. I could be wrong, but it works for me.
LINE_AFTER - The LINE_AFTER command is used to insert the lines after line a line (0 = the top of the edit session).

Testing the Macro

To test the macro, I needed to tell ISPF where to find it. I did this by executing the following command TSO ALLOC FI(SYSEXEC) DA(REXX.EXEC) SHR REUSE in the command shell. Note that this isn’t a permanent allocation. If you want to make it permanent there is another command you can use, but considering I’m still learning, I didn’t want to mess with that yet.

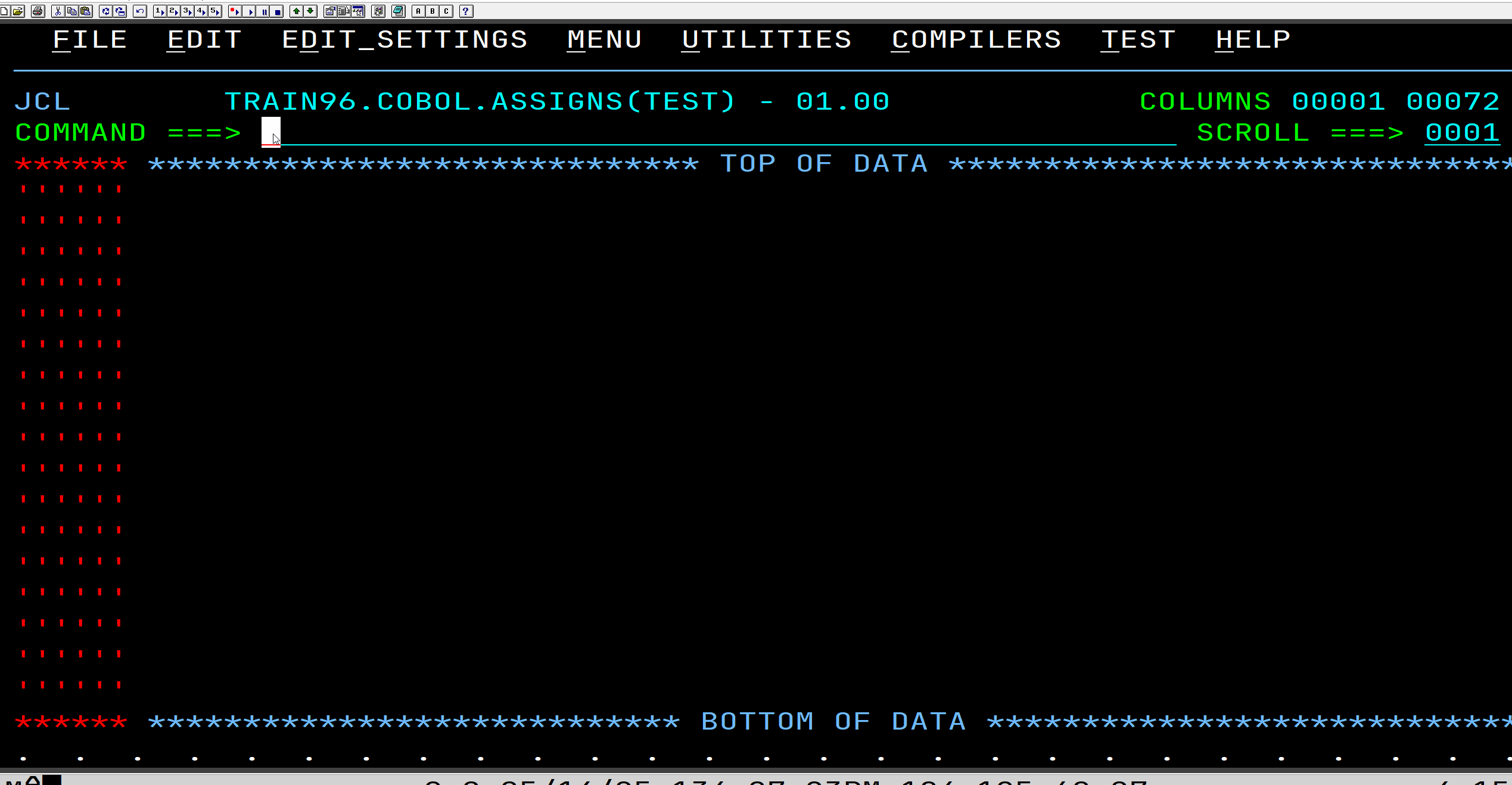

After that, I opened an empty member and typed DOCBOX JC in the command line.

Summary

In this article, I’ve introduced ISPF edit macros and shared my process for developing a documentation automation tool. The DOCBOX macro represents just the beginning of what’s possible with REXX scripting in z/OS environments.

Until next time, may the code be with you.
